Direct-Drive Linear Motor Solution for Vertical Five-Axis Machining Centers

Application Overview

Vertical five-axis machining centers are widely used for ultra-precision machining of complex surfaces and fine structural features. Such applications place extremely high demands on multi-axis positioning accuracy, low-speed motion stability, and long-term thermal stability.

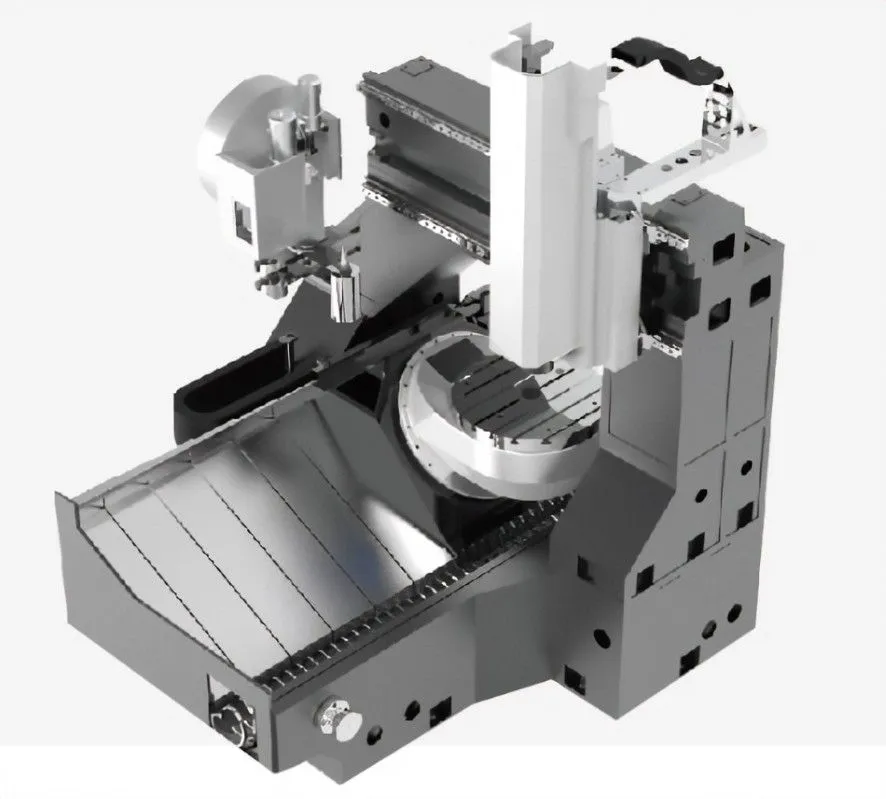

In this application case, the vertical five-axis machining center adopts a full direct-drive solution based on INCT linear motor technology, enabling high-precision positioning and stable continuous machining performance.

Engineering Challenges

⚙️ Ultra-High Positioning Accuracy

The linear axes of the machine are required to achieve positioning accuracy better than 0.003 mm, placing strict requirements on drive smoothness, control resolution, and mechanical integration.

⚙️ Low-Speed Motion Stability

Precision machining operations are often performed at very low feed rates. Any speed fluctuation or micro-vibration can directly affect surface finish and dimensional accuracy.

⚙️ Thermal Influence on Accuracy

At micron-level precision, even small temperature changes can lead to measurable positioning errors. Effective control of motor heat generation is therefore essential for maintaining stable machining accuracy over time.

INCT Solution

INCT Linear Motor Full Direct-Drive Architecture

The X, Y, and Z linear axes of the machining center are all driven by INCT linear motors, forming a fully direct-drive motion system.

By eliminating mechanical transmission components such as ball screws and gears, the direct-drive architecture:

👉 Removes backlash and transmission-related errors

👉 Reduces friction and mechanical wear

👉 Enables smooth and stable low-speed motion

The INCT linear motor design combines high thrust density with controllable heat generation, helping to minimize thermal drift and support long-duration precision machining.

Key Performance Results

Item	Performance
X / Y / Z positioning accuracy	< 0.002 mm
X / Y / Z repeat positioning accuracy	< 0.001 mm
Minimum movement unit (control resolution)	0.000001 mm
Position feedback resolution (after interpolation)	0.0001 mm

Note: The minimum movement unit and feedback resolution indicate control and feedback capability. Actual machining accuracy is evaluated based on positioning and repeat positioning performance.

Keys to Success

🚀 Full direct-drive linear motor architecture eliminates transmission-induced errors

🚀 Extremely low speed fluctuation supports high-quality surface machining

🚀 Controlled motor heat generation minimizes thermal drift

🚀 High-resolution closed-loop feedback enables stable sub-micron positioning control

Typical Applications

• Ultra-precision vertical five-axis machining centers

• High-accuracy mold and die machining

• Precision components for electronics and optical equipment

• Medical devices and high-end precision parts

• Laser and optical system components

Engineering Consultation

If you are evaluating a direct-drive linear motor solution for a vertical five-axis machining center, please contact the INCT engineering team for technical consultation and application support.
