As industrial automation continues to evolve, many machines and production systems require precise, flexible, and digitally controllable linear motion. In response to these demands, electric cylinders have become an increasingly important motion component in modern automation equipment.
Electric cylinders are now widely used in assembly machines, packaging systems, electronics manufacturing, battery production, medical automation, and testing equipment, where accuracy, repeatability, and programmable motion are essential.
INCT electric cylinder product series are designed to meet these requirements across a wide range of loads and stroke lengths.
This article provides a clear, engineering-focused explanation of what an electric cylinder is, how it is constructed, where it is used, and why it plays a key role in modern automated systems.
An electric cylinder is a linear motion actuator that converts electrical energy into straight-line mechanical motion. It combines an electric motor with a mechanical transmission system to generate controlled linear movement.
Unlike fluid-driven actuators, electric cylinders allow motion parameters—such as position, speed, acceleration, deceleration, and stroke length—to be controlled digitally through a motion controller or servo drive. This enables highly accurate, repeatable, and programmable linear motion.
From a functional perspective, an electric cylinder performs linear positioning tasks similar to other linear actuators, but its control method and performance characteristics make it especially suitable for applications that require precision and flexibility.

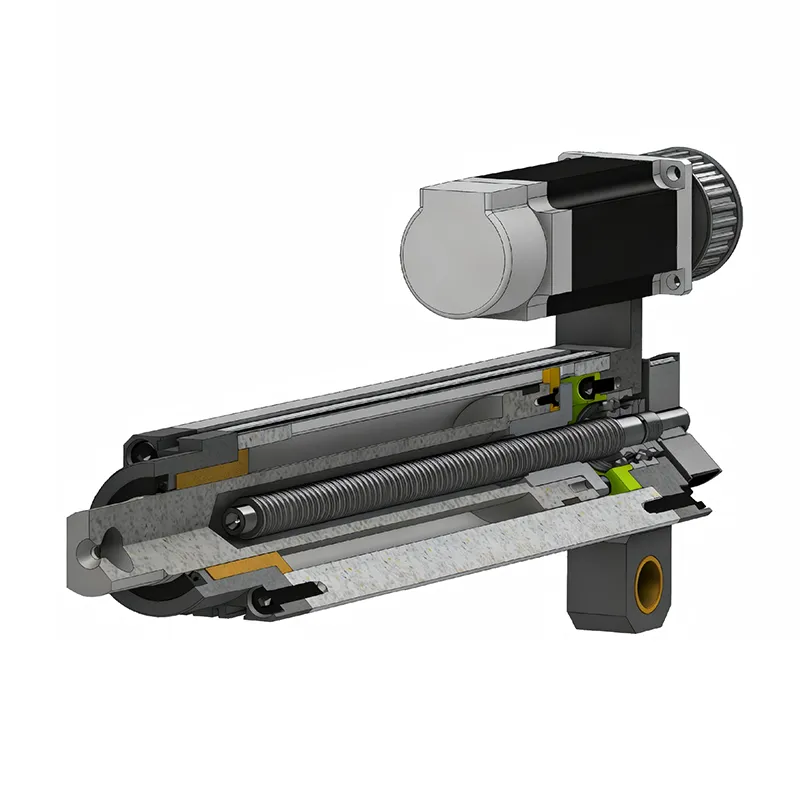

Although electric cylinders vary in size, load capacity, and configuration, most designs are built around several core components. Understanding these components helps engineers evaluate performance, reliability, and suitability for specific applications.
The drive motor provides the rotational motion required to generate linear movement. Common motor types include:
• Servo motors – widely used in industrial automation due to closed-loop control, high accuracy, and fast dynamic response
• Stepper motors – used in simpler applications with lower speed and precision requirements
For most industrial applications, servo-driven electric cylinders are preferred because of their precise motion control capabilities.
The transmission mechanism converts rotational motion into linear displacement. The most common mechanisms include:
• Ball screws – high efficiency, low friction, and excellent positioning accuracy
• Lead screws – simpler structure and lower cost, suitable for lighter loads
Ball screw-driven electric cylinders are typically selected for high-precision, high-duty-cycle automation systems.
The guiding structure supports the moving rod or carriage and maintains alignment during operation. Depending on the design, this may include:
• Internal guide rails
• Linear bearings
• Integrated linear guideways
A robust guiding system improves stiffness, load capacity, and service life, especially when side loads are present.
Feedback devices provide real-time position and status information to the control system. These may include:
• Motor-mounted encoders
• Linear encoders or position sensors
Feedback enables closed-loop control, ensuring accurate positioning and repeatable motion throughout the operating cycle.
The mechanical housing protects internal components from dust and mechanical damage while improving overall rigidity. Housing design also affects:
• Heat dissipation
• Environmental resistance
• Installation and maintenance convenience
The working principle of an electric cylinder is straightforward and highly controllable.
When the motor is energized, it produces rotational motion. This rotation is transmitted to the screw mechanism—typically a ball screw. As the screw rotates, the nut or slider moves along the screw axis, producing linear motion.
By controlling the motor through a servo drive or motion controller, the system can precisely regulate:
• Stroke position
• Travel speed
• Acceleration and deceleration
• Motion sequence and synchronization
Because motion is controlled electrically, electric cylinders can perform complex tasks such as multi-position stopping, synchronized multi-axis movement, and smooth motion profiles.
Electric cylinders are used across many industries, but their applications are best understood by examining motion requirements rather than industry labels.
• Automated assembly equipment
• Electronics and semiconductor manufacturing
• Testing and inspection machines
These applications benefit from high accuracy and repeatability.
• Packaging machinery
• Material handling and conveying systems
• Pick-and-place equipment
Electric cylinders allow motion parameters to be adjusted through software, supporting rapid product changeovers.
• Battery production lines
• Robotics and automated handling systems
• Integrated automation cells
Digital control enables precise coordination between multiple motion axes.
• Medical automation equipment
• Laboratory and analytical systems
Electric cylinders are well suited for environments where cleanliness and controlled motion are required.
To support these applications, the electric cylinder series offer multiple configurations for industrial automation systems.
The growing adoption of electric cylinders is driven by several technical advantages.
Closed-loop control enables consistent and repeatable positioning, which is essential for precision automation.
Motion profiles can be modified through software rather than mechanical adjustments, allowing:
• Easy process optimization
• Rapid system reconfiguration
Electric cylinders consume power only when motion is required, making them suitable for energy-conscious automation designs.
Electric cylinders integrate easily with modern automation systems, including:
• PLCs
• Servo drives
• Motion controllers
This simplifies system design, commissioning, and diagnostics.
An electric cylinder is a precise and flexible linear motion solution that combines an electric motor, mechanical transmission, and motion control technology into a compact assembly. Its ability to deliver accurate, programmable, and repeatable linear motion makes it a key component in modern industrial automation.
As automation systems continue to demand higher performance and smarter control, electric cylinders play an increasingly important role in enabling reliable and efficient machine operation.
